Transformer Coil Winding Line

Transformer Coil Winding Line

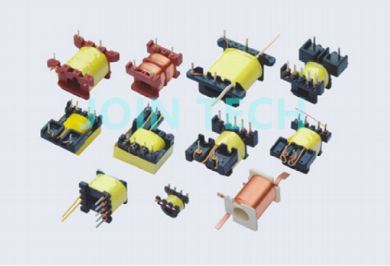

Various kind of transformer coils that have several group of winding+ taping.
Including enamel wire winding, litz wire winding, 3 insulation wire wire winding, insulation taping, reflex tapping, and margin taping
Different type of winding and taping machines can be assembled or separated freely.

Product Details

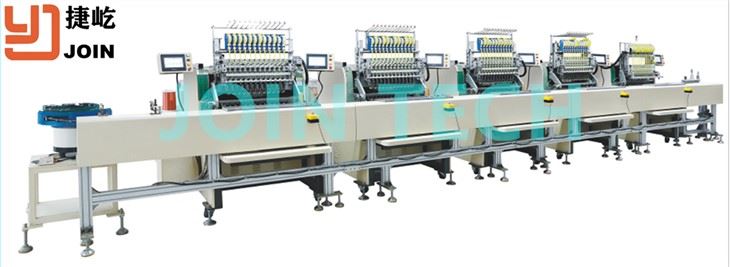

Machine model: JY1245LBN

Customized transformer coil production line


1.Range of use

Various kind of transformer coils that have several group of winding+ taping.

Including enamel wire winding, litz wire winding, 3 insulation wire wire winding, insulation taping, reflex tapping, and margin taping

Different type of winding and taping machines can be assembled or separated freely.


2.Main function

-Auto vibration feeder, auto load/unload, auto pin wrapping, auto winding, auto traversing, auto wire cut and clamp. Auto insulation taping, auto margin taping, auto reflex taping.

Auto transferred by high speed trolley.


3.Optional device

-Auto feeder device, Auto scissors device, auto taping station.

-Auto soldering and testing device


4.Customer provide transformer coil winding and taping technical in advance is necessary.

Then JOIN provides the best solution.
