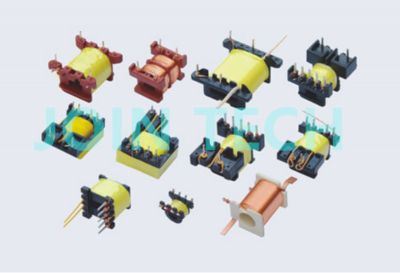

Table type high frequency transformer coil winding machine. General transformer coil that need winding and taping (insulation taping and margin taping), such as high frequency transformers.Low cost and easy the operate and maintance.

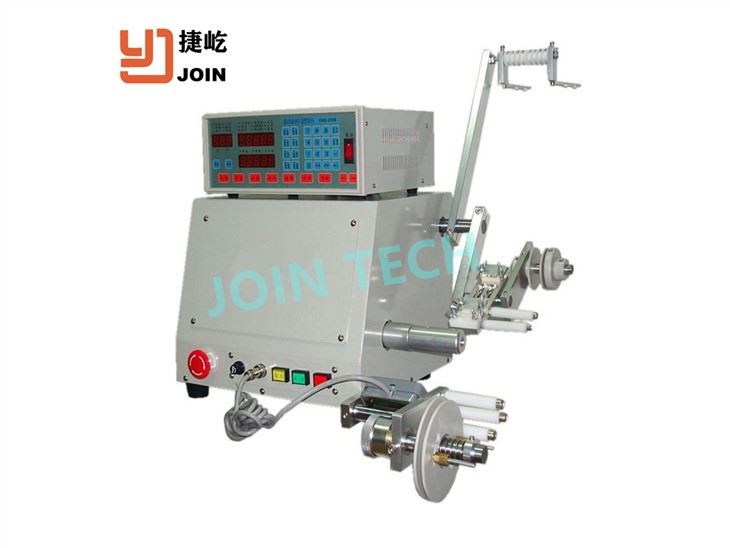

Machine model: JY1DMTB
1.Range of use
Table type high frequency transformer coil winding machine. General transformer coil that need winding and taping (insulation taping and margin taping), such as high frequency transformers.Low cost and easy the operate and maintance.
2. Main function
Manual load/unload bobbin, manual fix start leader wire
Auto winding, auto wire traversing, precise wire layer winding.
Manual prepare insulation taping or margin taping, auto taping,
Manual wire/tape cut and clamp.
Parameter setting before winding.
3. Main specification
Spindle speed | 0-3000rpm |
Traversing accuracy | 0.01mm |
Traversing width | 0~90mm |
Main motor | AC motor |
Traversing motor | Step motor |
Power | 1000W |
Revolution width | 190mm |
Wire size | 0.02-1.0mm |
Power supply | AC220V±5% 50HZ |
Machine size | 500mm(L)×700 mm(W)×900mm(H) |
Weight | 50kg |
4. Main accessories: --Magnetic tensioner
--Insulation tape and margin tape device.
