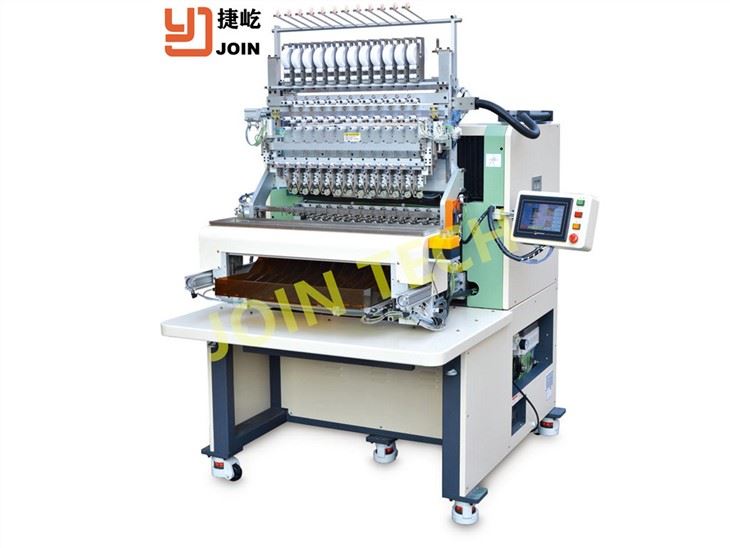

Machine model: JY1245BJ

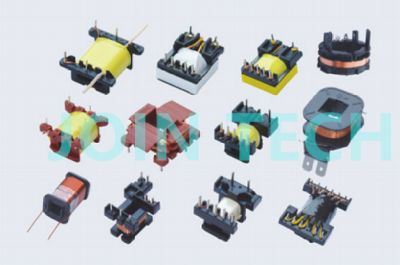

1.Range of use

Various kind of transformer coils that need winding and taping.

For example EI transformer. Low frequency transformer coil winding and taping

2.Main function

-Manual put bobbin on the load bar on the winding machine load station.

-Operator press start button.transformer bobbin auto load to winding spindle

– Auto pin wrapping, auto winding, auto traversing, auto wire cut and clamp.

-Auto taping, insulation taping ,auto scissors device to cut wire.

- Standard English language operation HMI. Easy known winding program in the HMI.

3.Technical specification

Machine model	JY1251BJ
Rotation diameter	<φ40mm
Wire size	0.02mm-0.30mm(0.3-0.6mm need auto scissors to cut)
Power supply	Single phase AC220V（±5%），50Hz
Air source	0.5-0.6 MPa
Number of spindle	12、16
Pitch	51mm
Main motor	Servo 1.5kW
Spindle speed	0-10000rpm
Stroke of XYZ	X≤150mm；Y≤150mm；Z≤150mm
Wrapping position	0°，90°, 135°
Gross weight	800KG
Machine dimension	1300mm（L）×1200mm（W）×1500mm（H）

4.Packing and delivery

5.Machine standard packing list

6．Optional parts:Auto vibration feeder
