Slider Toroid Winding Machine

Slider Toroid Winding Machine

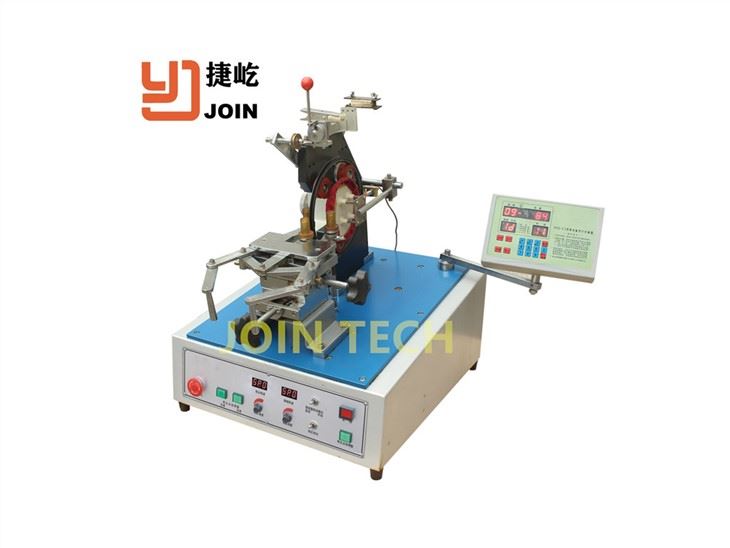

Slide type Toroidal winder.Mainly for small toroidal cores winding, such as toroidal inductor. SMD-coils, small coils, small filters and transformers.

Product Details

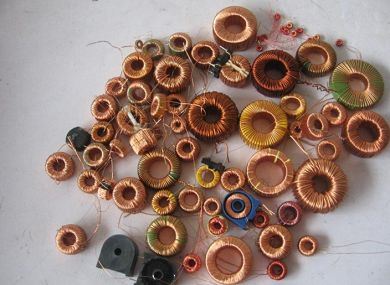

1.Range of use

Slide type Toroidal winder.Mainly for small toroidal cores winding, such as toroidal inductor. SMD-coils, small coils, small filters and transformers.

2


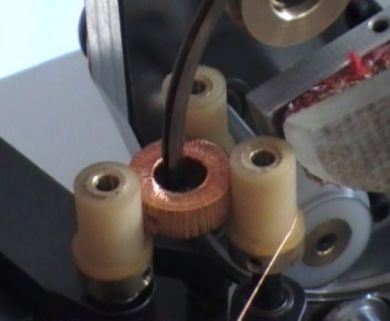

2.Main function and feature

Professional CNC toroid controller, winding by slider type winding shuttle.

Manual load/unload toroidal, auto stock wires in the slide ring, auto winding and traversing, Manual fix leader wires.

1


3.Machine main specification

JY-0966H(slider head machine/Shu.ID.90) unti:mm

Wire diameter

0.05—0.12

Max.winding speed

800rpm

Max.final coil.O.D

φ30(80)

Wire spacing

Proportional linkage

Min.final coil.I.D

φ5

Supply voltage

AC 220V(50Hz)

Max.finalcoil height

15

Mechanical dimensions

550×500×580

Controller storage capacity Programs

29group(set)

Weight

83kg


JY0966P(belt head machine/Shu.ID.90) unit:mm

Wire diameter

0.15-0.30

Max.winding speed

1000rpm

Max.final coil.O.D

φ30

Wire spacing

Proportional linkage

Min.final coil.I.D

φ4.5

Supply voltage

AC 220V(50Hz)

Max.finalcoil height

15

Mechanical dimensions

550X500X580

Controller storage capacity Programs

29group(set)

Weight

83kg


JY1738P(Belt head machine/Shu.ID.140) unit:mm

Wire diameter

0.2-0.80

Max.winding speed

800rpm

Max.final coil.O.D

φ60(110)

Wire spacing

Proportional linkage

Min.final coil.I.D

φ8

supply voltage

AC 220V(50Hz)

Max.finalcoil height

30

Mechanical dimensions

550X500X580

Controller storage capacity Programs

29group(set)

Weight

83kg
