1.Range of use

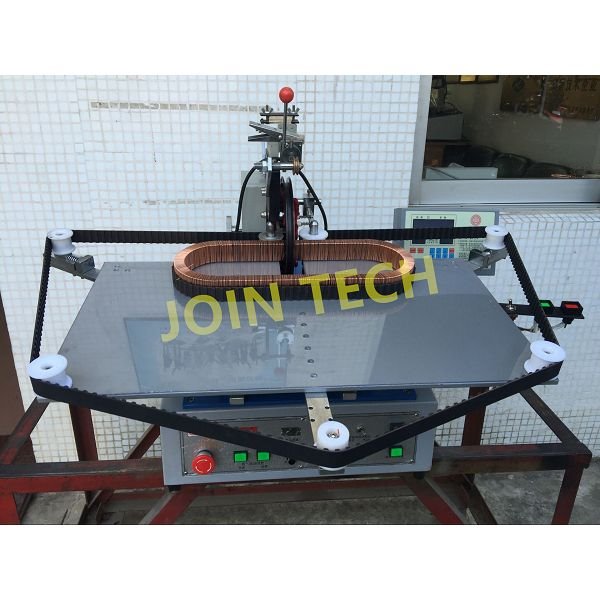

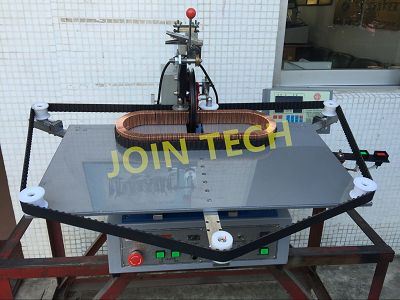

Customized rectangular toroidal winding machine.

For different kind of rectangular toroidal winding.

The buyer should provide rectangular toroid diameter and winding technicals.

(002)

2.Machine specification.

JGJ-2074(Slider head machine/Mag.ID.195) unit:mm

Wire diameter	0.20—0.70	Max.winding speed	700rpm
Max.outer Length and width	φ65—430、φ55	Wire spacing	Proportional linkage
Min.inner length and width	φ45-385、φ35	Supply voltage	AC 220V（50Hz）
Max.final coil height	60	Mechanical dimensions	1000×950×750
Controller storage capacity Programs	29group（set）	Weight	100kg

JGJ-1640(gear head machine/Mag.OD.300) unit:mm

Tape width	0.70—2.00	Max.winding speed	200rpm
Max.outer Length and width	φ65—430、φ55	Wire spacing	Proportional linkage
Min.inner length and width	φ45-385、φ35	Supply voltage	AC 220V（50Hz）
Max.final coil height	80	Mechanical dimensions	1000×950×780
Controller storage capacity Programs	29（set）	Weight	110kg

3.Machine packing

wooden box

4.Delivery time

10 days after PO and advance payment.
