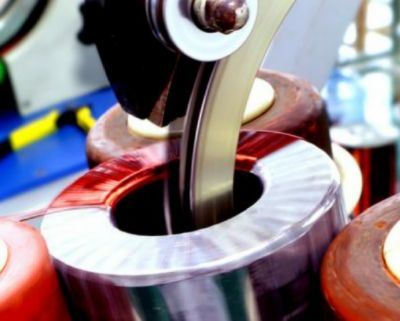

1.Range of use

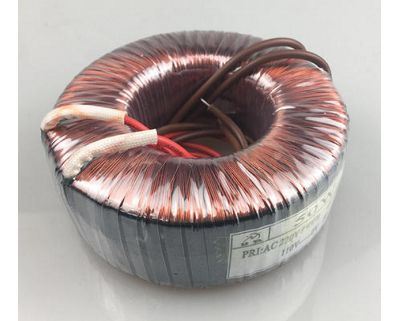

Gear type toroid winding machine.For various kind of toroid core winding, such as toroid transformers.

power magnetics,UPS inductor, converter inductors, watter metter sensors, toroid current transformer of electronic watter-hour meter, etc.

2.Machine main specification

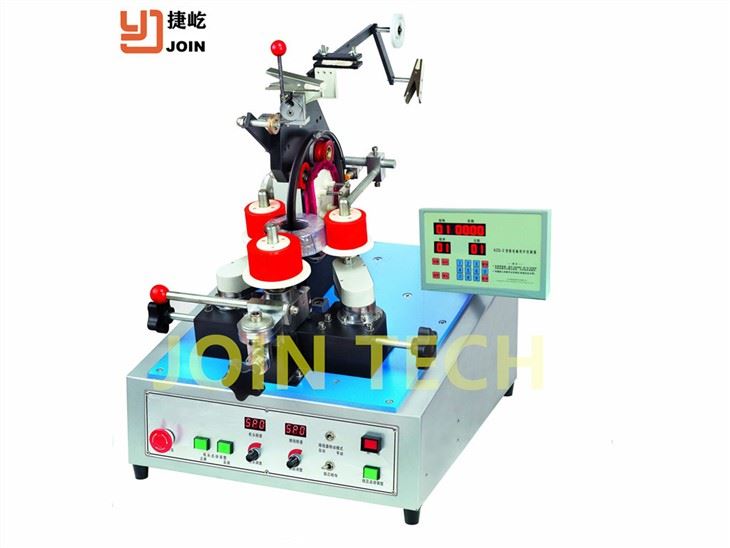

JY-4163B（gear head machine/Mag.OD.250） unit:mm

Wire diameter	0.50—1.30	Max.winding speed	200rpm
Max.final coil.O.D	φ60—200	Wire spacing	Proportional linkage
Min.final coil.I.D	φ25	Supply voltage	AC 220V（50Hz）
Max.finalcoil height	80	Mechanical dimensions	550×500×750
Controller storage capacity Programs	29（set）	Weight	94kg

JY-4163（gear head machine/Mag.OD.250） unit:mm

Wire diameter	0.60—1.60	Max.winding speed	200rpm
Max.final coil.O.D	φ60—200	Wire spacing	Proportional linkage
Min.final coil.I.D	φ30	Supply voltage	AC 220V（50Hz）
Max.final coil height	80	Mechanical dimensions	550×500×750
Controller storage capacity Programs	29（set）	Weight	94kg

JY-5204（gear head machine/Mag.OD.250） Unit:mm

Wire diameter	0.70—2.00	Max.winding speed	200rpm
Max.final coil.O.D	φ60—200	Wire spacing	Proportional linkage
Min.final coil.I.D	φ40	Supply voltage	AC 220V（50Hz）
Max.finalcoil height	80	Mechanical dimensions	550×500×750
Controller storage capacity Programs	29（set）	Weight	94kg

JY-6204（gear head machine/Mag.OD.300） unit: mm

Wire diameter	0.70—2.50	Max.winding speed	200rpm
Max.final coil.O.D	φ60—200	Wire spacing	Proportional linkage
Min.final coil.I.D	φ40	Supply voltage	AC 220V（50Hz）
Max.final coil height	100	Mechanical dimensions	550×500×780
Controller storage capacity Programs	29（set）	Weight	94kg
