China Customized Floor Type Toroid Winding Achine Suppliers, Manufacturers - Factory Direct Price

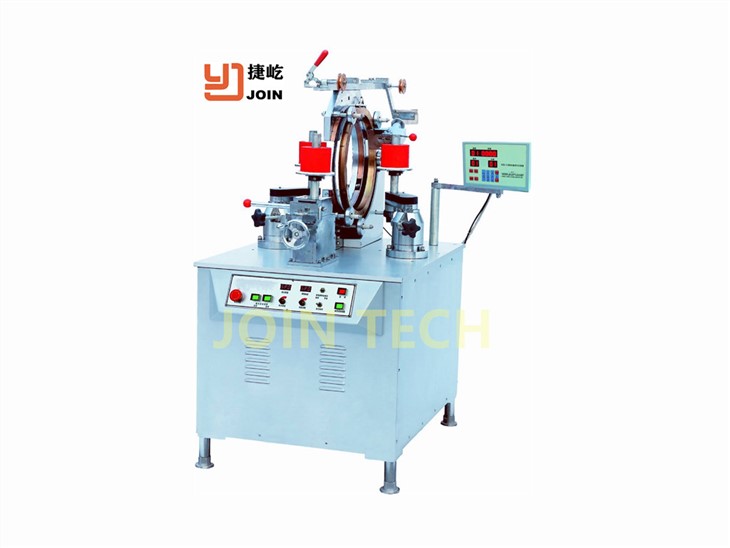

Floor type toroid winding machine.

1.Range of use

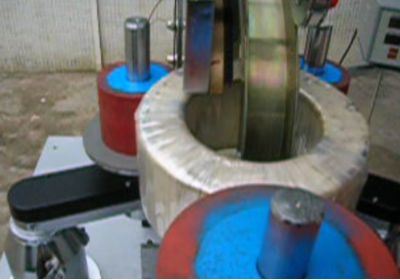

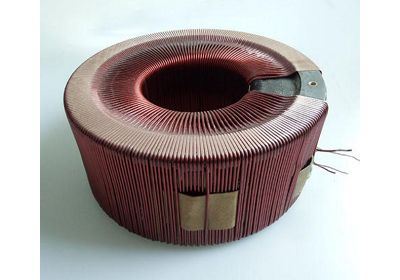

Big size toroid winder.For various kind of big toroidal ring winding.

2.Machine specification

JY-7204（gear head machine/Mag.OD.400） Unit:mm

Wire size range	1.0—4.0	Max.winding speed	150rpm
Max O.D after winding	φ130—650	Wire spacing	Proportional linkage
Min.final after winding	φ60	Supply voltage	AC 220V（50Hz）
Max.height after winding	150	Mechanical dimensions	900×600×1350
Controller storage capacity Programs	29（set）	Weight	240kg

JY-8554（gear head machine/Mag.Dia.550） Unit:mm

Wire diameter	1.2—4.5	Max.winding speed	150rpm
Max.final coil.O.D	φ250—1000	Wire spacing	Proportional linkage
Min.final coil.I.D	φ80	Supply voltage	AC 220V（50Hz）
Max.finalcoil height	320	Mechanical dimensions	900×600×1350
Controller storage capacity Programs	29（set）	Wdight	240kg

3.Machine delivery time:3 days after full payment.
