Single station automatic winding machine. Mainly for big segment motor core winding. And big bobbin or segments tooth multi-strand wire winding.

Product Details

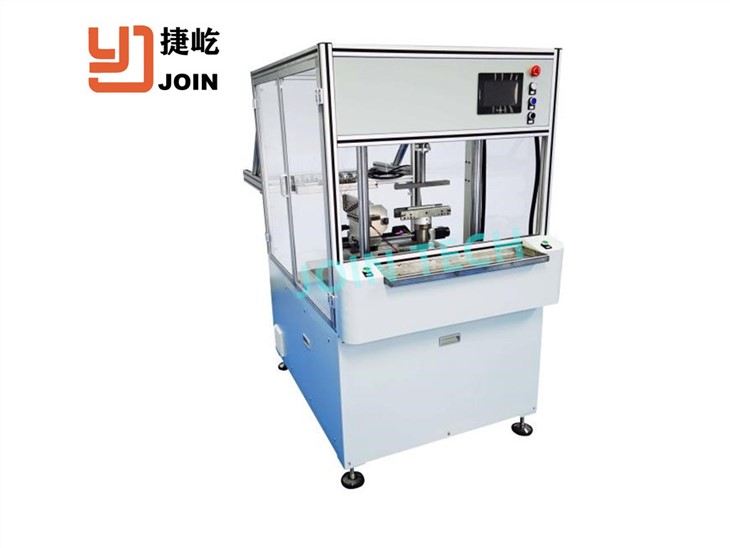

Machine model: JY1250


1、 Range of use

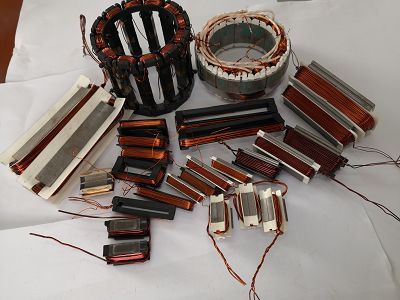

Single station automatic winding machine. Mainly for big segment motor core winding. And big bobbin or segments tooth multi-strand wire winding.

IMG_20200107_101410(001)QQ20210326163102


2、Main function

- Single station. One or 2-3-4 pcs segment combined winding. Max 10 strand wire winding.

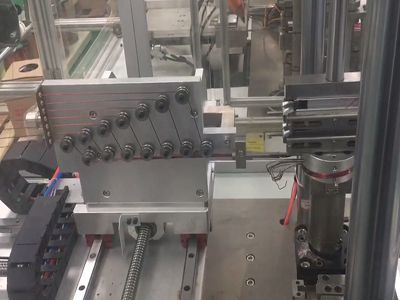

-Auto winding machine,manual load/unload, auto leader wire fixed on tooling or bobbin pins. Auto tailstock, auto winding, auto traversing, auto cross bridge wire. auto wire cut and clamp.

-Different type of coil winding: only need to exchange the fixtures and saved programs.

-Security cover and sensor for protecting operator. English /Chinese language in HMI.


3Technical specification

Machine model

JY1250

Spindle quantity

1

Traversing width

≤100mm(Z axis movement width)

Revolution Diameter

<φ200mm

Wire size range

0.02mm-2.5mm

Max wire strands

10

Spindle speed

0-1000rpm

Nozzle wrapping positon

Main motor

Servo 1500W

3D motor

Servo 400W

Power supply

AC220V(±5%),50Hz

Air source

0.5-0.6 Mpa

3D movement width

X≤150mm;Y≤150mm;Z≤200mm

Gross weight

300KG

Machine dimension

1200mm(L)×800mm(W)×1500mm(H)
