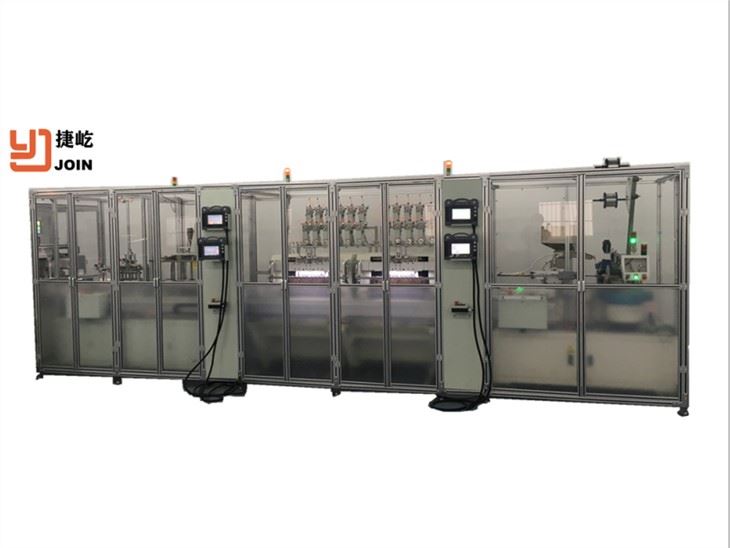

Solenoid Coil Winding Machine Line

1.Range of use

Customized solenoid coil production line. For various kind of solenoid coil, ABS coil,relay coil, ignition coil and step motor coils.

2.Main station and device.

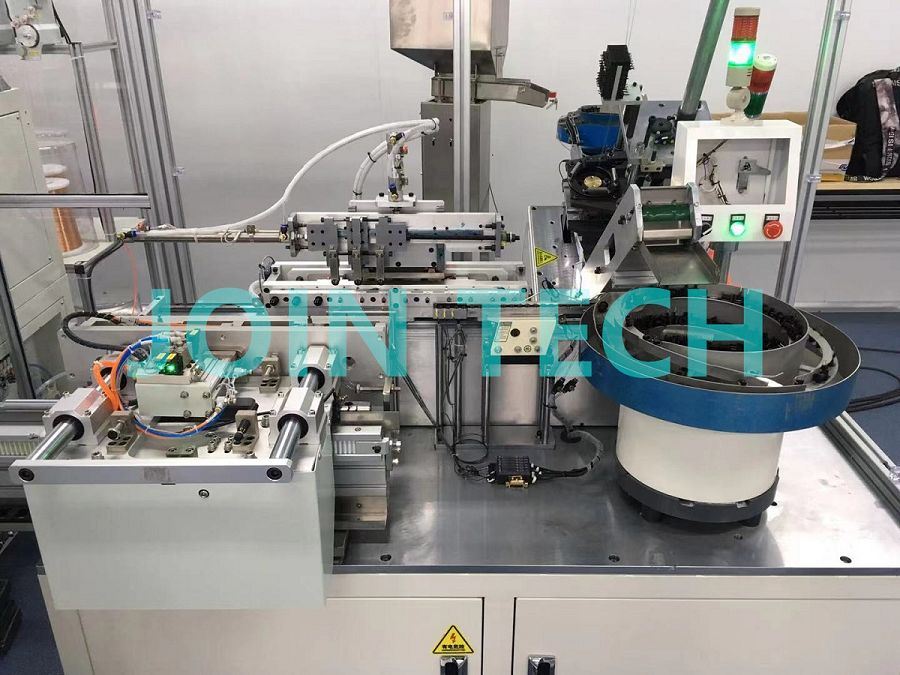

-Auto vibration feed station

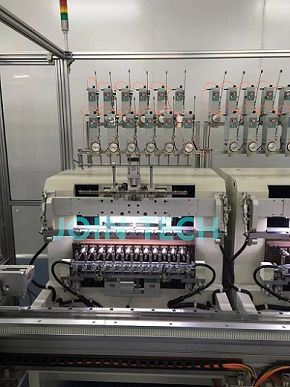

-Auto winding station (2 set 12 spindle winding machine)

-Auto fluxing, soldering and testing station.

-High speed carry line and transfer trolleys.

3.Main function and working procedure

-Bobbin auto feed by vibration tray to first trolley,

-First trolley auto transfer to winding station, bobbin auto load to winding machine spindle.

-Auto precise layer winding, auto wrapping, auto wire cut/clamp.

-Bobbin Auto unload to the second trolley. Auto transfer to soldering station by the second trolley.

-Auto pin soldering and testing. Auto unload to the third trolley to next assembly station.

4.Optional device

-Auto taping station and electric servo tensioner.

-Engineer overseas machine installation and testing service.
