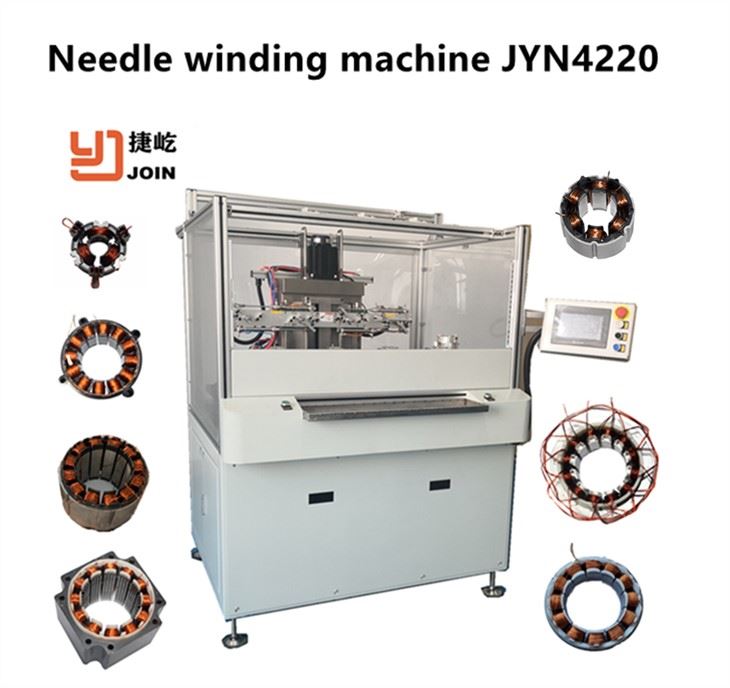

Machine model:YN4220

1、 Range of use

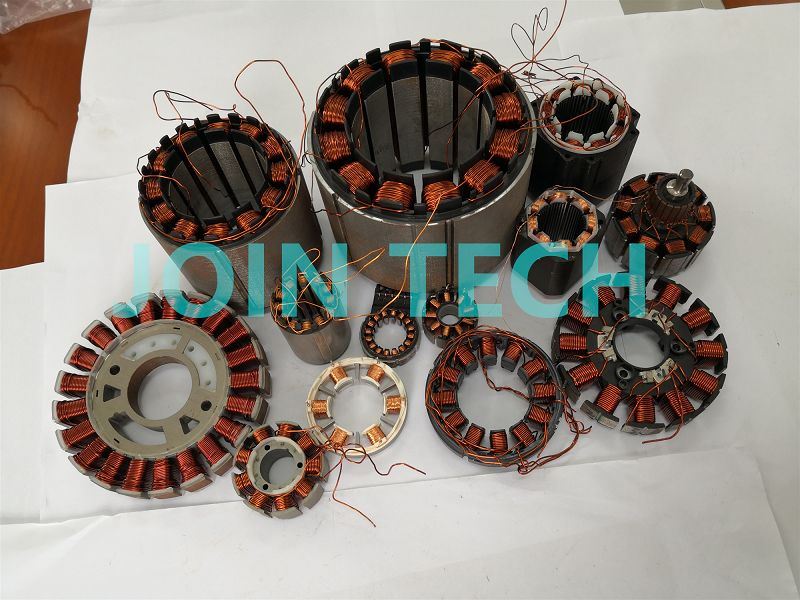

4 spindle Brushless motor stator needle winding machine. Various kind of blushless motor stator needle winding, such as washing machine motor stator，sewing machine motor, stepper motor, Pump motor stator needle winding and other BLDC motor needle winding.

IMG_20200107_105159(001)

2、 Main function

-Two/Four station needle winding machine

-Stator manual load/unload, auto start wire fixed, auto winding, auto accuracy traversing for layer winding, auto wire cut and clamp.

-Operation language:English/Chinese.

$PQ949A{H_46PFXOD@]3I]RP$

3、Technical specification

Winding station	4
3D movement width	X≤200mm，Y≤200mm,Z≤250mm
Max core OD	200mm
Min core ID	6mm
Max stack height	200mm（can be customized to 250）
Wire size range	0.1-1.0mm
Winding speed	0-700rpm（Depends on stator diameter）
Power supply	AC380V（±5%），50Hz
Air source	0.5-0.6 Mpa
Gross weight	750KG
Machine diameter	1200mm(L)1200mm(W)1800mm(H)
