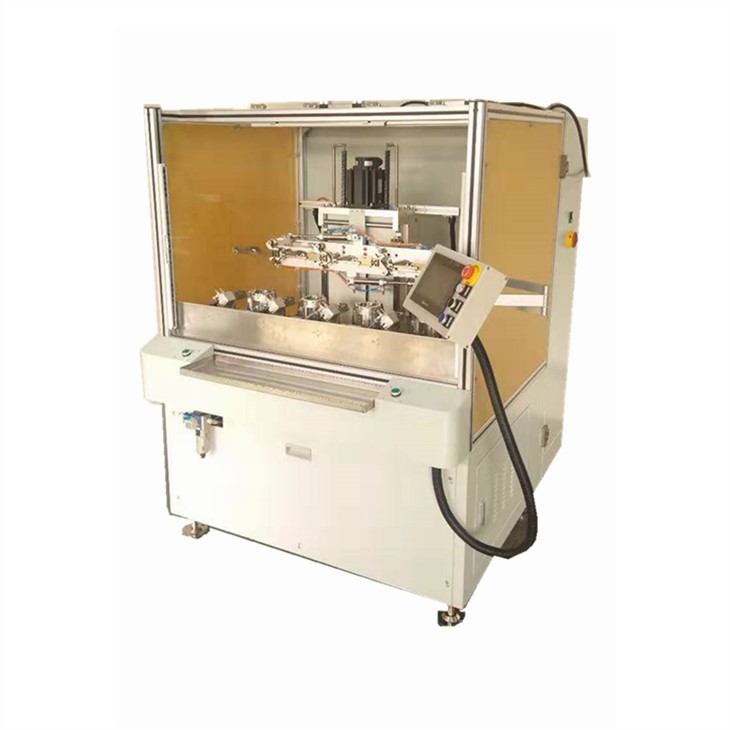

China Customized Needle Winding Machine for Fan Motor Suppliers, Manufacturers - Factory Direct Price

1、 Range of use

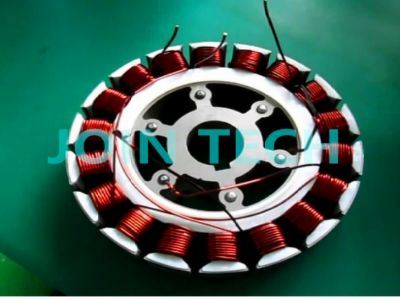

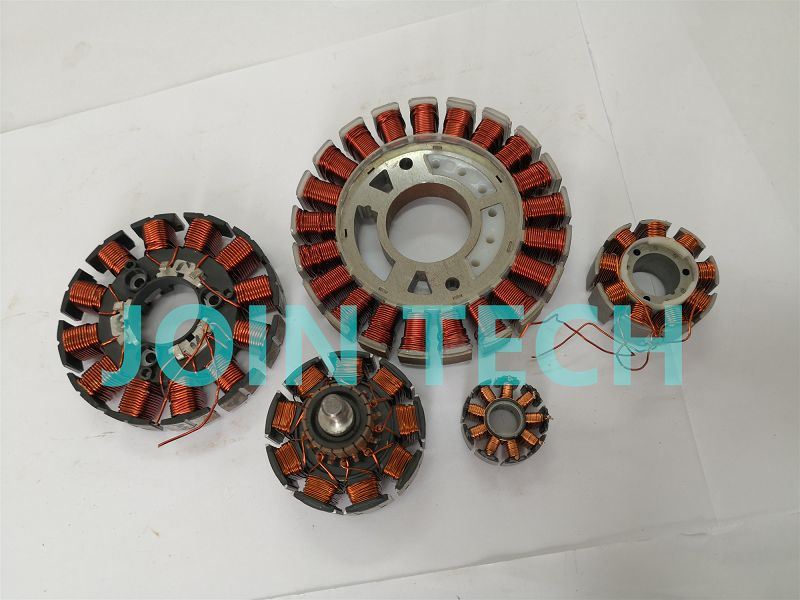

Rotor needle winding machine。For various kind of outer rotors needle winding and precise layer winding. For example fan motor needle winding. Electric bike motor rotor winding.

(001)

2、Main function

-Manual load/unload, auto tailstock, auto start wire fixed, auto winding, auto accuracy traversing for layer winding, auto wire cut and clamp.

-Different type of rotor winding: only need to change the fixtures and saved programs.

3、Optional device

- Electric servo tensioners

4、Technical specification

Winding station	4
3D movement width	X≤200mm，Y≤200mm,Z≤250mm
Max core OD	100mm
Min core ID	10mm
Max stack height	100mm（can be customized to 250）
Wire size range	0.1-1.2mm
Winding speed	0-500rpm（Depends on stator diameter）
Power supply	AC380V（±5%），50Hz
Air source	0.5-0.6 Mpa
Gross weight	750KG
Machine diameter	1200mm(L)1200mm(W)1800mm(H)
