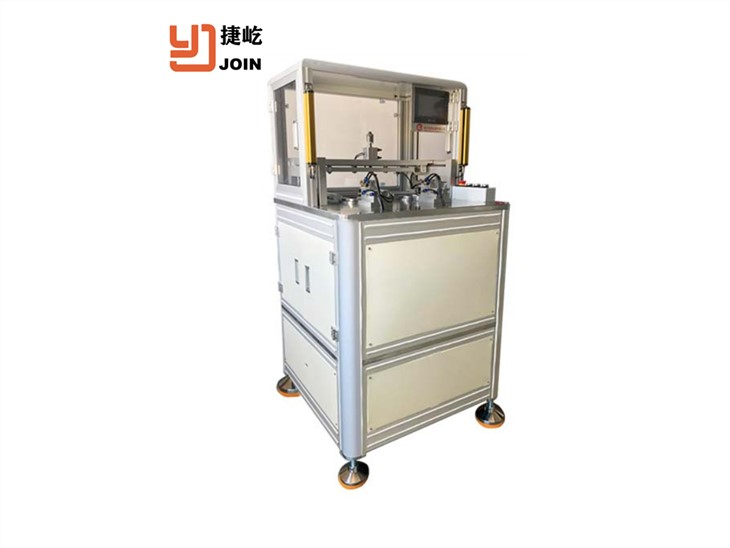

Needle Winding Machine Brushless Motor

Needle Winding Machine Brushless Motor

Power tool stator CNC winding machine
Two spindle power tool brushless motor stator winding.

Product Details

JYNX-02


1、 Range of use

Power tool stator CNC winding machine

Two spindle power tool brushless motor stator winding.

QQ20210326145119QQ20210326144811

2、  Main function

  -Manual load/unload, auto start wire fixed, auto winding, auto wire cut and clamp.


3Technical specification

Winding station

2

3D movement width

X≤200mm,Y≤200mm,Z≤250mm

Max core OD

90mm

Min core ID

12mm

Max stack height

5-70mm

Wire size range

0.1-1.3mm

Winding speed

0-700rpm(Depends on stator diameter)

Power supply

AC380V(±5%),50Hz

Air source

0.5-0.6 Mpa

Gross weight

400KG

Machine diameter

800mm(L)*800mm(W)*1600mm(H)
