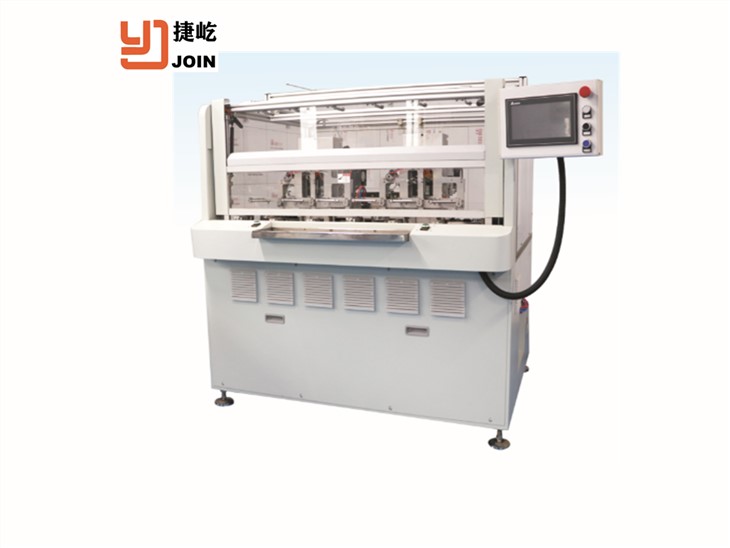

China Customized High Speed Needle Winding Machine Suppliers, Manufacturers - Factory Direct Price

Machine model:JYN6220

1、 Range of use

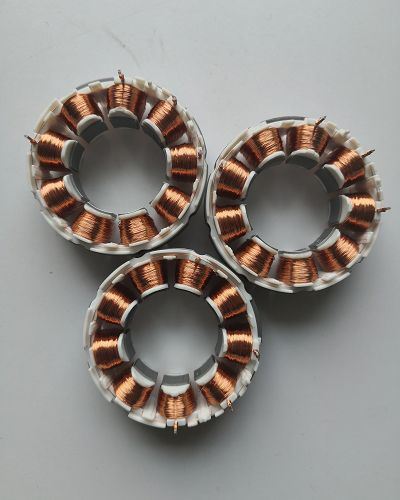

6 spindle high speed needle winding machine. Various kind of blushless motor stator that have more turns for needle winding.Such as pump motor stator.Stepper motor stator,fan motor and other brushless motor stator winding.

JYN6200

2、Main function

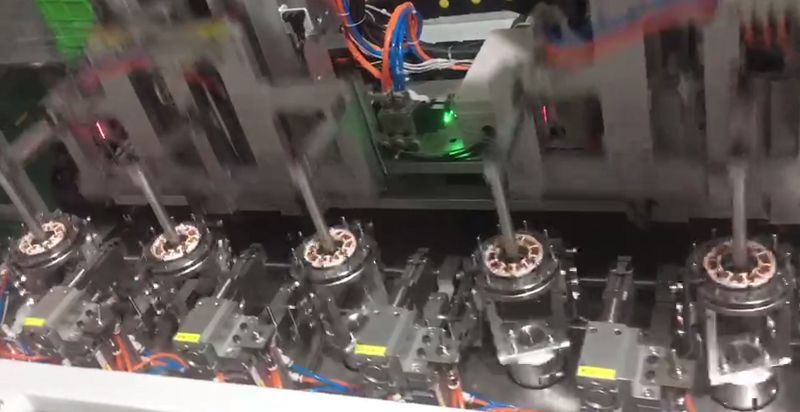

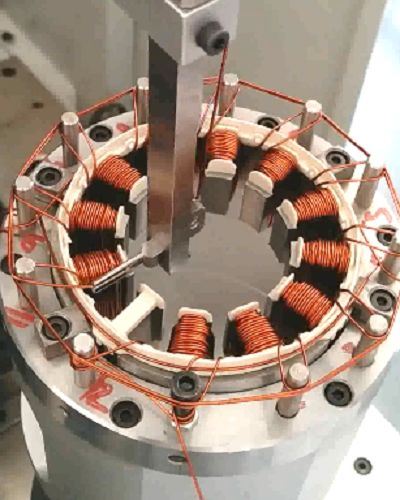

-High speed needle winding machine, Needles moving controlled by servo motor for inner stator layer winding.

-Manual load/unload, auto start wire fixed, auto winding, auto accuracy traversing for layer winding, auto wire cut and clamp.

-Different type of stator winding: only need to change the fixtures and saved programs.

-CNC winding machine,winding program is easy to known and saved in the English language HMI.

3、Technical specification

Winding station	6
3D movement width	X≤200mm，Y≤200mm,Z≤250mm
Max core OD	200mm
Min core ID	6mm
Max stack height	200mm（can be customized to 250）
Wire size range	0.1-0.7mm
Winding speed	0-1000rpm（Depends on stator diameter）
Power supply	AC380V（±5%），50Hz
Air source	0.5-0.6 Mpa
Gross weight	900KG
Machine diameter	1200mm(L)1200mm(W)1800mm(H)
