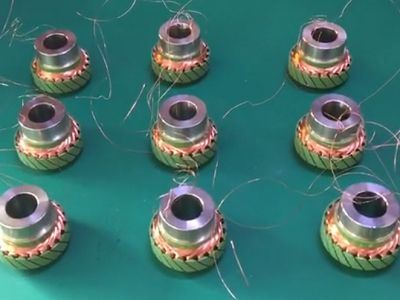

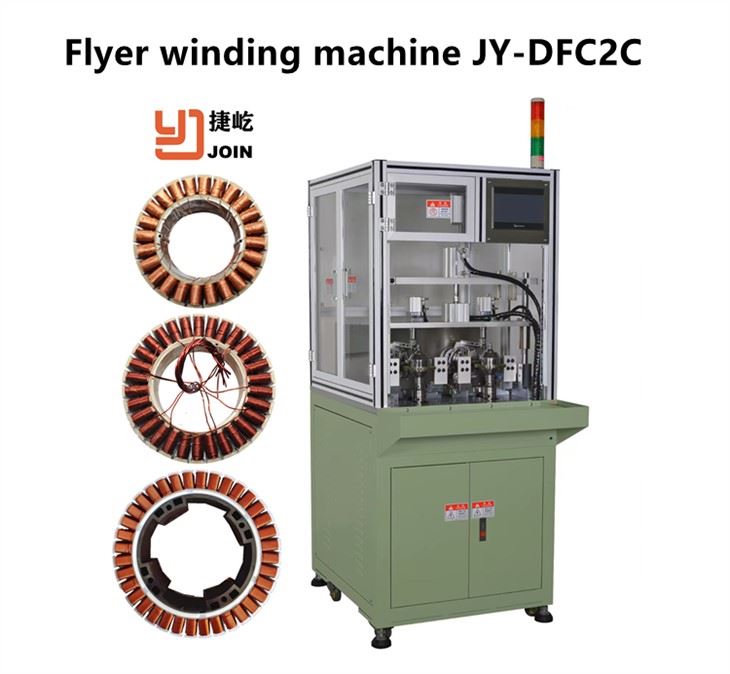

UAV motor stator winding machine. Rotor flyer winding machine. For brushless motor rotor outer flyer winding. such as UAV motor, balance, scooter motor, new energy vehicle motor and rotary transformer motor.
JYDF-2
1、 Range of use
UAV motor stator winding machine. Rotor flyer winding machine. For brushless motor rotor outer flyer winding. such as UAV motor, balance, scooter motor, new energy vehicle motor and rotary transformer motor.
 |  |
2. Main function
-Two station flyer winding, multi-strand wire winding, high efficiency production.

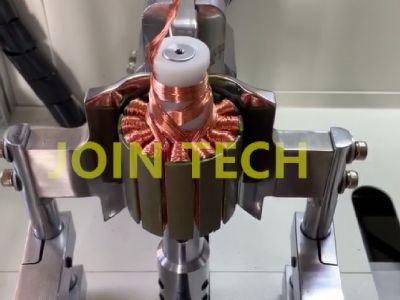

-Manual load/unload, auto flyer winding, precise layer winding, rotor auto division,, auto wire cut and clamp.
3. Technical specification
Winding station | 2 |
Wire size range | 0.1-0.7mm |
Rotor OD | 20mm-140mm |
Max stack height | 5mm-50mm |
Traversing width | 30mm |
Winding speed | 0-2000rpm |
Power supply | AC200V（±5%），50Hz |
Air source | 0.5-0.6 Mpa |
Gross weight | 300KG |
Machine diameter | 850mm(L)*650mm(W)*1650mm(H) |
4.Optional parts
Electronic tensioner/servo tensioner/Magnetic tensioner
Semiauto Winding and Taping Machine
Toroidal Coil Winding Machine
Armature Winding Machine
Spot Welding Machine

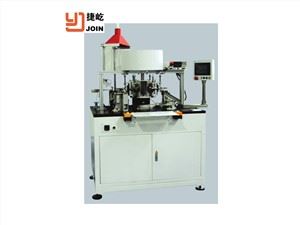

Rotate Soldering Machine
