Auto 16 spindle relay coil winding machine, High speed winding machine for different coils such as relay coil and valve coil that with more winding turns.

Product Details

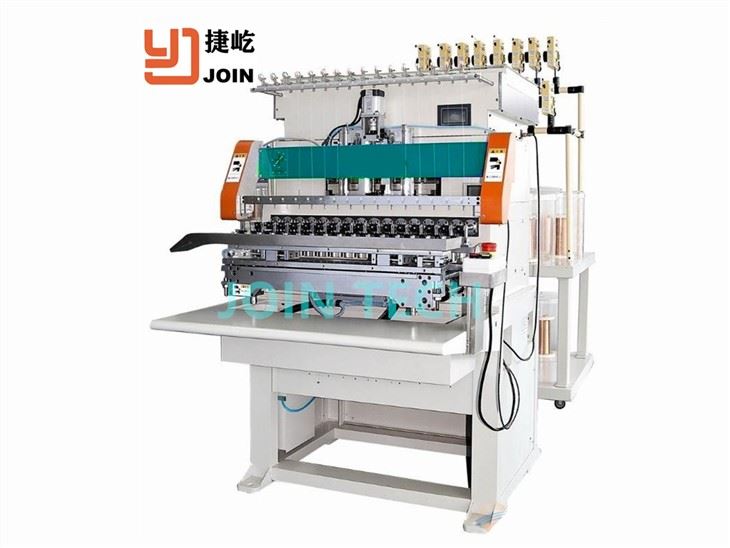

Machine model: JY1660


1、Range of use

Auto 16 spindle relay coil winding machine, High speed winding machine for different coils such as relay coil and valve coil that with more winding turns.

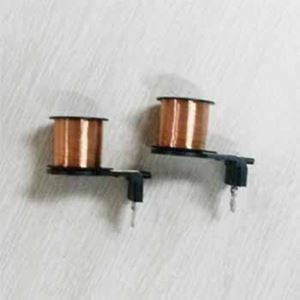

_1621581011771

2、Main function

     -Bobbin auto load/unload, auto wrapping, auto winding, auto traversing, auto wire cut and clamp. Different type of coil winding: only need to exchange the fixtures and saved programs.

     -Tensioner tight/loose device, servo motor control wire clamper position.

     -Machine try winding and testing before delivery.

     -HMI language:English/Chinse.


3、Technical specification


Machine model

JY1660

Machine box style

Fixed

Stroke of transverse

 ≤50mm

Rotation diameter

 <φ55mm

Wire size

 0.02mm-0.30mm

Power supply

Single phase AC220V(±5%),50Hz

Air  source

 0.5-0.6 MPa

Number of spindle

 16

Pitch

 60mm

Main motor

Servo 1.5kW

Spindle speed

 0-12000rpm

XYZ motor

 servo 200W

Stroke of XYZ

 X≤95mm;Y≤70mm;Z≤70mm

 Movement speed

 ≥100mm/second

Wrapping position

 0°,90°

Reposition accuracy

 ≤±0.02mm



 4、 Machine main configuration

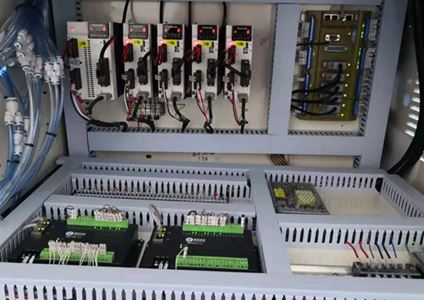

      Servo motor: Panasonic (5 set)

      Pneumatic parts: AIRTAC

      Control system:JOIN(Leadshine)


5、 Optional device

  -Auto taping device, auto skeining, device, electric servo tensioner。



6、Delivery time: 40 days after PO and advance payment.
