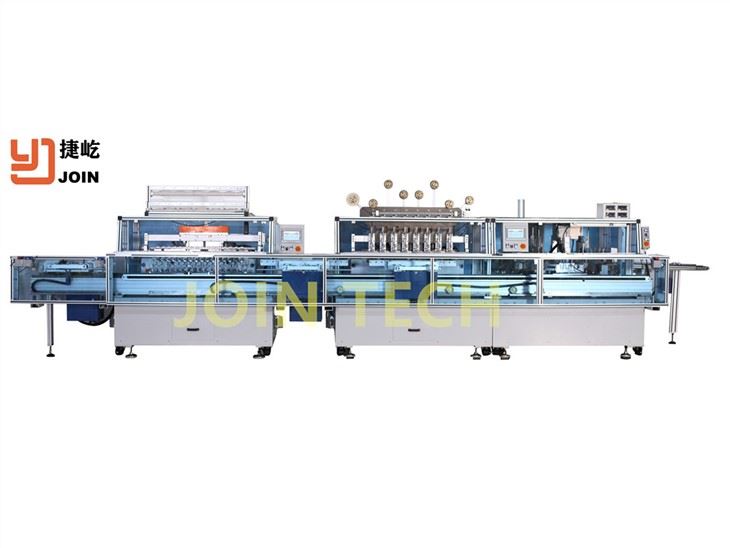

Motor Coil Winding Machine Line

Machine model: JY1275LBHJ

1、Range of use

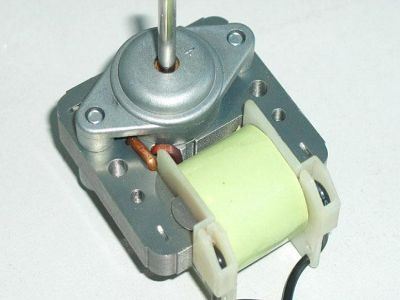

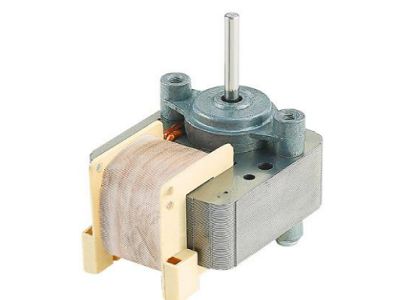

Customized shaded pole motor coil production line，For various kind of coils production line, such as shaded pole motor coil.

2、Main function

     -Bobbin Auto vibration feeder,auto pin insert into bobbin.

-Bobbin auto load to winding station, auto start wire wrapping on the pins, auto winding, auto traversing, auto end wire wrapping on the end pin,auto wire cut and clamp.

     -Coils auto transfer to taping station. Auto taping.

     -Coils auto transfer to soldering station, auto load, auto fluxing, auto soldering and testing, auto reject NG coil

3、 Optional device

-Auto wire stripping device, auto taping station, auto soldering and test station. electric servo tensioner。
