Ignition Coil Winding Machine

Ignition Coil Winding Machine

Automatic ignition coil winding machine,bobbin coil winder.Various kind of coils such as ignition coil winding, relay coil winding and small transformer coil winding.

Product Details

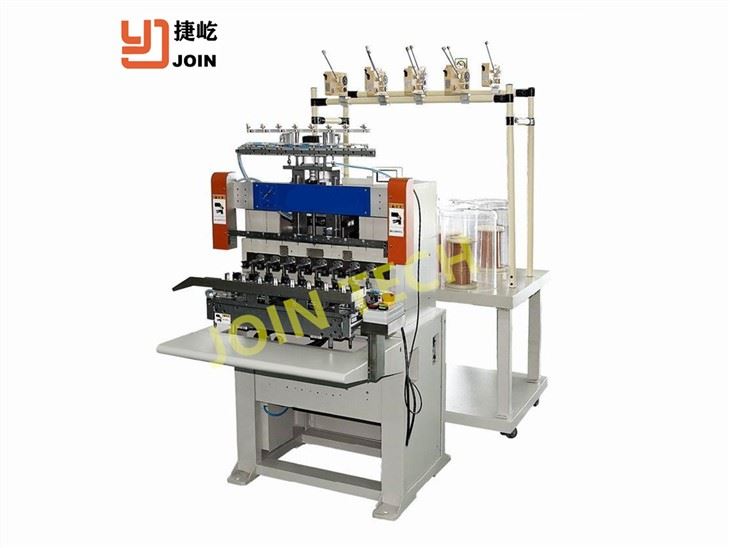

Machine model: JY1251

1.Range of use

Automatic ignition coil winding machine,bobbin coil winder.Various kind of coils such as ignition coil winding, relay coil winding and small transformer coil winding.

JY12512(001)JY12512(002)


2.Main function

-Bobbin auto load/unload, auto pin wrapping, auto fix leader wire on the tooling(if no pins on the bobbin),auto winding, auto traversing, auto wire cut and clamp.

-Wire clamper controlled by servo motor

-English operation language. Easy known winding program saved in HMI.


3.Technical specification

Machine model

JY1251

Rotation diameter

<φ45mm

Wire size

0.02mm-0.30mm(reach to 0.6 if with auto scissors)

Power supply

Single phase AC220V(±5%),50Hz

Air source

0.5-0.6 MPa

Number of spindle

12

Pitch

51mm

Main motor

Servo 1.5kW

Spindle speed

0-9000rpm

XYZ motor

servo 200W

Stroke of XYZ

X≤95mm;Y≤100mm;Z≤100mm

Wrapping position

0°,90°,135°


4.Optional device

-Auto taping device, electric servo tensioner。
