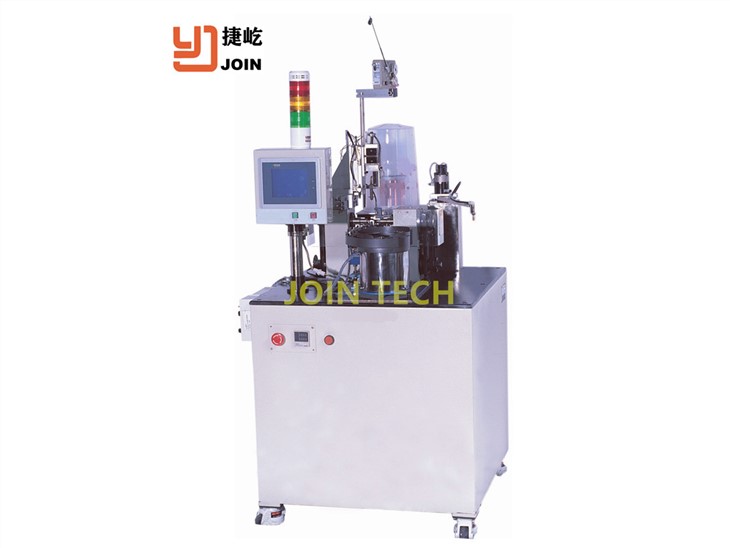

RFID ferrite core winding machine ,For various kind of ferrite coil, such as automobile remote-control door transponder,,tyre pressure signal transponder coil.
1. Range of use
RFID ferrite core winding machine ,For various kind of ferrite coil, such as automobile remote-control door transponder,,tyre pressure signal transponder coil.
2. Main function

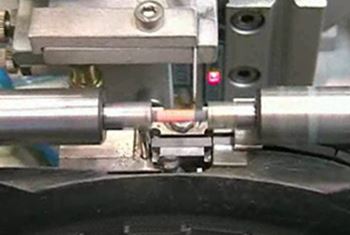

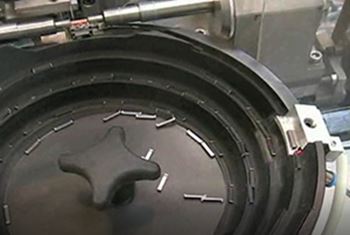

Auto vibration feeder,ferrite auto load, auto start wire welding on the ferrite ,auto winding and traversing, auto terminal leader wire welding on the ferrite, auto unload.
3. Machine main specification
Machine box | fixed |
Spindle speed | 0-3000rpm |
Wire size | 0.02-0.1mm |
Traversing width | 30 |
Max convolution size | 15 |
The thermo compression bonding temperature | 600℃ |
Power supply | 220V 50hz |
Air source | 0.4-0.6mpa |
Dimension | 700*800*1500mm |
Weight | 150kg |
4. Full-auto winding+welding machine.One operator could manage more than 10 set machines.
