Automatic Voice Coil Winding Machine

Automatic Voice Coil Winding Machine

Full automatic voice coil winding machine. Various kind of bobbinless coil, such as voice coil winding, loudspeaker coil, earphone coils ,electronic label coil and IC/ID card coil.

Product Details

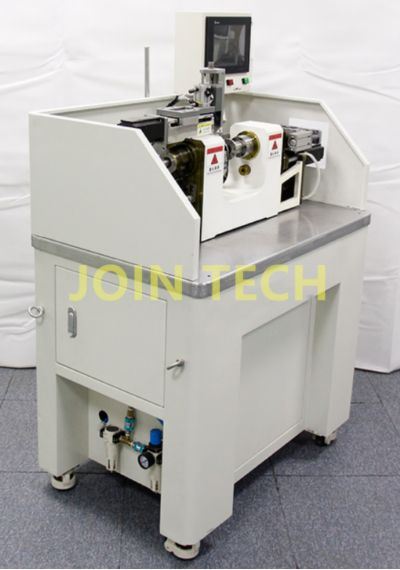

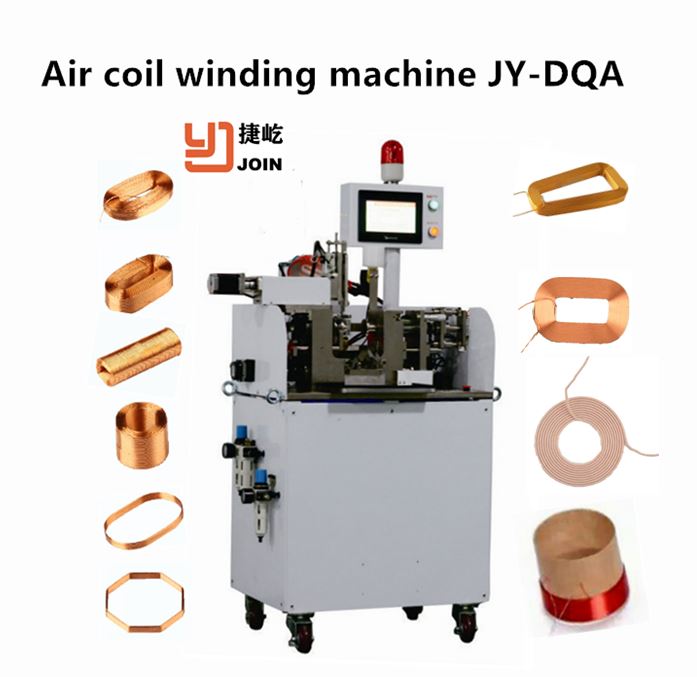

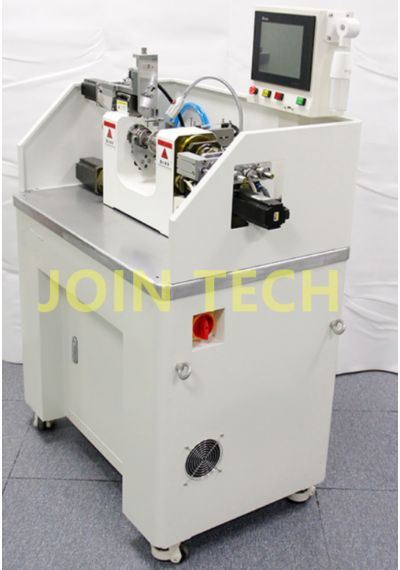

Machine model: JYDQA


1.Range of use

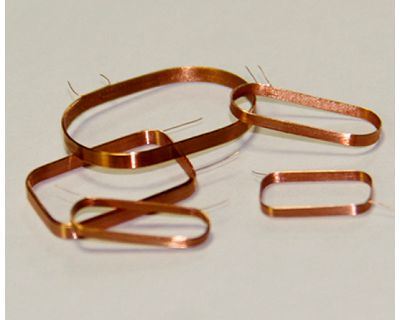

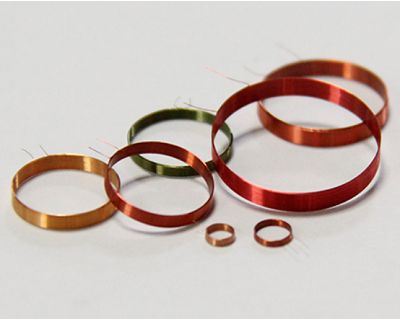

Full automatic voice coil winding machine. Various kind of bobbinless coil, such as voice coil winding, loudspeaker coil, earphone coils ,electronic label coil and IC/ID card coil.

QQ20210324165047voice coil
QQ20210324165405QQ20210324165429

2.Main function

-Auto winding, auto traversing, auto wire precise layer winding, auto wire cut and clamp.

-Auto hot air blowing device and temperature control system.

-Full auto winding machine. One operator could manage more than 10 set machines.


3.Technical specification

Machine model

JYDQA

Wire type

Self bonding wire

Stroke of transverse

≤20mm

Rotation diameter

<φ120mm

Wire size

0.02mm-0.40mm

Power supply

Single phase AC220V(±5%),50Hz

Air source

0.5-0.6 MPa

Number of spindle

1

Spindle position accuracy

0.1°

Spindle speed

0-4500rpm

Main motor

Servo 750W

X motor

servo 200W

Stroke of X

X≤70mm

X Reposition accuracy

≤±0.01mm

Machine size

90cm*60cm*140cm

Machine weight

150KG


4. Optional device

-Electric servo tensioner。
