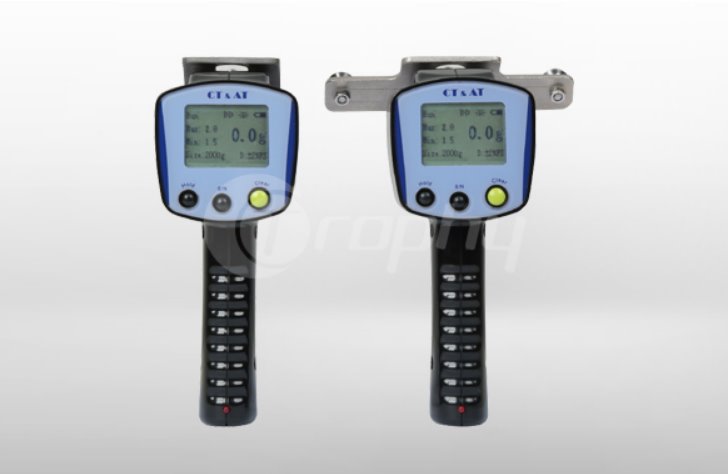

Winding machine digital tensioner meter.The T6 series tension meter is used to accurately measure the running line tension on a wide variety of yearns, fibers, and wires (copper, aluminum, plastic & etc.).
1.Main specification
Winding machine digital tensioner meter.The T6 series tension meter is used to accurately measure the running line tension on a wide variety of yearns, fibers, and wires (copper, aluminum, plastic & etc.).
2.Advantages
Large LCD display panel, clear display with high brightness backlight.
Clean, streamlined handle design, easy handling.
Simple and user friendly function buttons for easy operation.
Direct display of real time measurement, with maximum and minimum measured values displayed simultaneously.
Memory back-up function.
Display unit selectable (gram/cN)
Suitable for tension measurement of enameled copper wire, cotton thread, plastic wire, metal wire etc.
Powered by rechargeable environmental-friendly polymer lithium battery with long battery life.
3.Model series
Model | Measurement Range(grams) | Trigger Plate Size | Accuracy |
T6-01-200 | 0 to 200 | 01 | ±1% FS |
T6-01-500 | 0 to 500 | 01 | ±1% FS |
T6-01-1000 | 0 to 1000 | 01 | ±1% FS |
T6-02-3000 | 0 to 3000 | 02 | ±2% FS |
Magnetic Tensioner

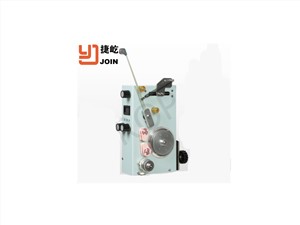

Electronic Tensioner

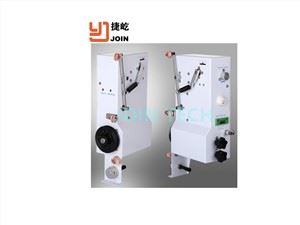

Servo Tensioner

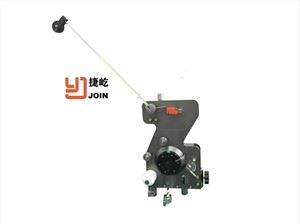

Mechanical Tensioner
