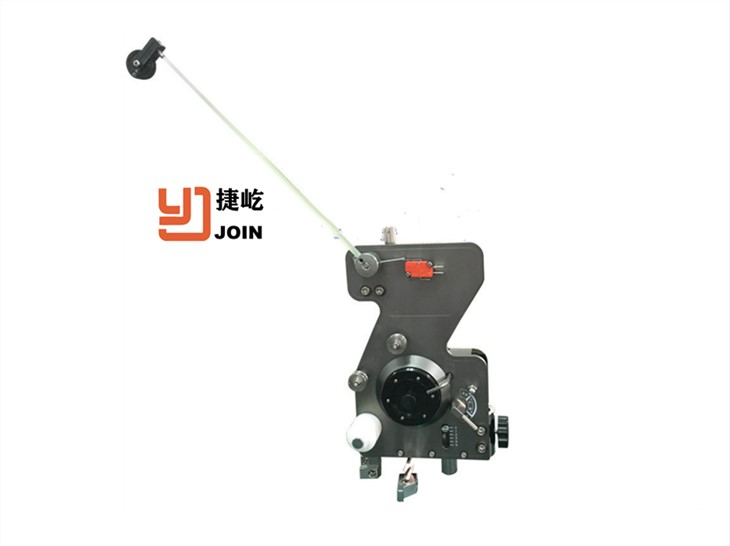

Winding machine mechanical tensioner. Tensioners are one of the vital parts of a coil winding process. They are used to ensure wire tension consistency during the winding process. By using a tensioner, the wire tension can be adjusted to the required tension accordingly, so as to achieve appropriate winding conditions and conformity of each coil's technical parameters.
1、 Main specification
Winding machine mechanical tensioner. Tensioners are one of the vital parts of a coil winding process. They are used to ensure wire tension consistency during the winding process. By using a tensioner, the wire tension can be adjusted to the required tension accordingly, so as to achieve appropriate winding conditions and conformity of each coil's technical parameters.
Mechanical Tensioner TC series operates by using the principle of mechanical friction to generate tension on the tension pulley. This main pulley is integrated with a braking system & the back-tension mechanism, to create a stable & consistent tension. TC tensioners come with wire breakage detection switch.
2、Model Selection
Model | Tensioner force range | Wire size range |
TCL | 0.2mm-0.6 mm | 200g-2000g |
TCLL | 0.5 mm -1.2 mm | 1000g-5000g |
TC3L | 0.7 mm -2.0 mm | 2000g-10000g |
