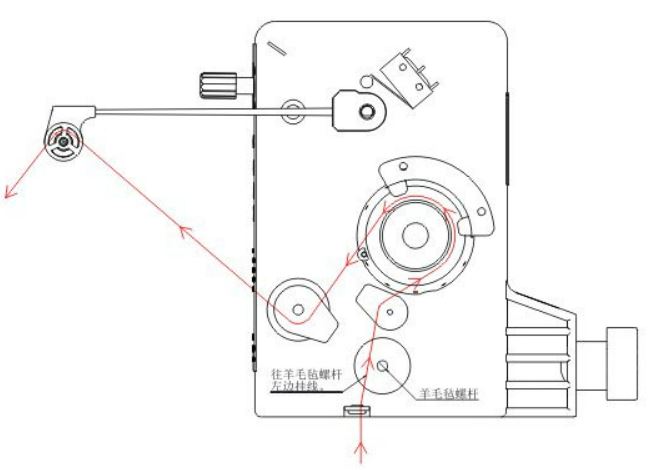

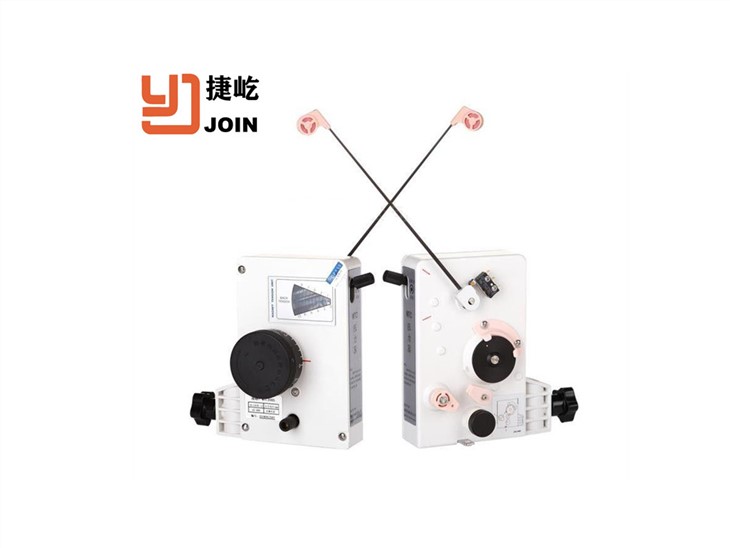

Winding machine magnetic tensioner,The magnetic tensioner NMTC series uses permanent magnets to control tension strength by varying the gap in between the magnets and the main tension wheel. The non-contact mechanism design provides stable, consistent and precise tension.
1、Main specification
Winding machine magnetic tensioner,The magnetic tensioner NMTC series uses permanent magnets to control tension strength by varying the gap in between the magnets and the main tension wheel. The non-contact mechanism design provides stable, consistent and precise tension.
Improved and upgraded design in main tension wheel and wire guide roller, eliminated wire jumps and jams to ensure smooth winding. Mounting of wire break detection switch also been re-designed to improve its lifespan.
2、Model Selection
Model | Tensioner force range | Wire size range |
MTCSS | 0.03mm-0.14 mm | 6g-120g |
MTC300S | 0.06 mm -0.25 mm | 14g-400g |
MTCS | 0.08 mm -0.4 mm | 30g-800g |
MTCM | 0.35 mm -0.8 mm | 300g-1500g |
MTCL | 0.4 mm -1.0mm | 500g-2500g |

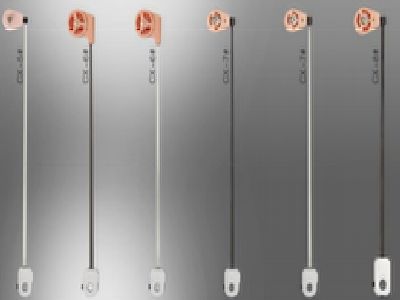

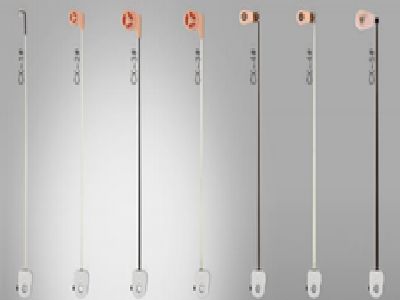

3.Optional tensioner arm
