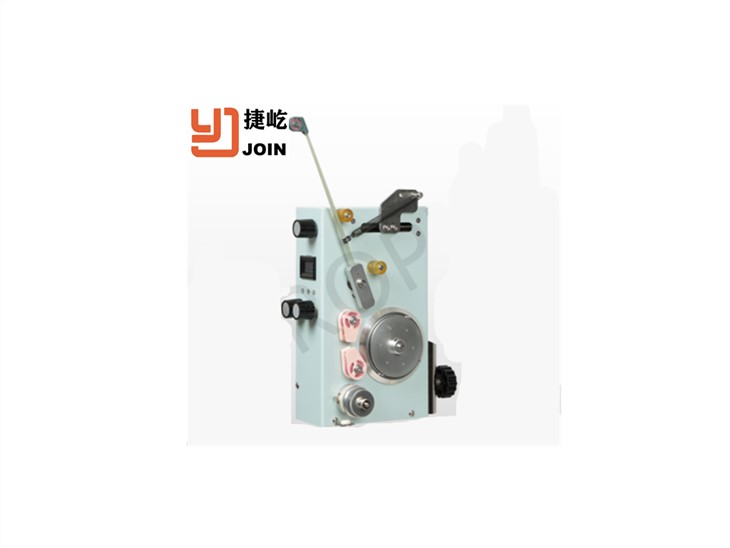

Winding machine electric tensioner. Tension of the MET tensioner is generated using hysteresis brake and a built-in control circuit. Its tensioning mechanism runs without any mechanical contact braking system, resulting in minimal friction from the connecting bearing. This provides a smooth, stable and consistent tension even in even high-speed winding.
Winding machine electric tensioner. Tension of the MET tensioner is generated using hysteresis brake and a built-in control circuit. Its tensioning mechanism runs without any mechanical contact braking system, resulting in minimal friction from the connecting bearing. This provides a smooth, stable and consistent tension even in even high-speed winding.
- Two tensions' settings for different stages of winding requirements
- Dual LED digital display, real-time reference value display
- Built-in wire breakage detection switch
MET-F Model Selection:
Model No. | Tension Range(g) | Suitable Wire Size(mm) | Tension Setting | Dimension(mm) | Weight(kg) |
MET-F500 | 50~500 | 0.07~0.30 | Two Tension Setting | 250*200*92 | 2.7 |
MET-F1000 | 100~1000 | 0.10~0.45 | Two Tension Setting | 250*200*92 | 2.7 |
MET-F2000 | 200~2000 | 0.15~0.65 | Two Tension Setting | 250*200*92 | 3.0 |
MET-F3000 | 300~3000 | 0.20~0.80 | Two Tension Setting | 260*220*95 | 4.5 |
