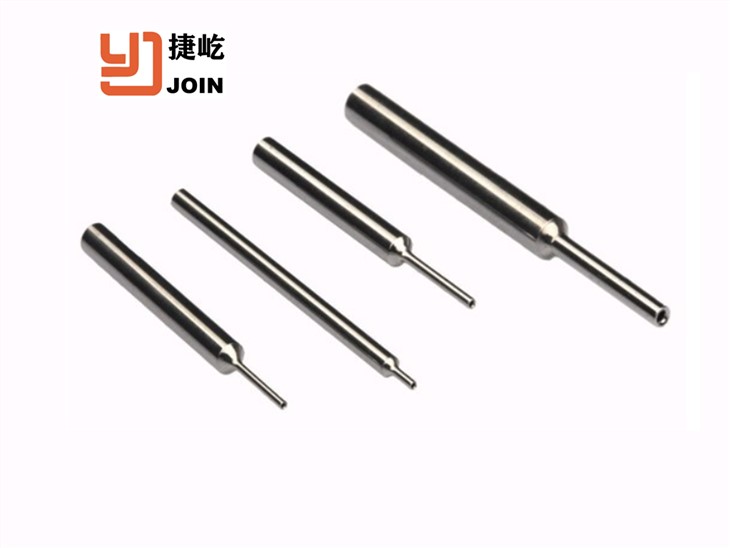

Winding Machine Tungsten Nozzle

1. Main specification

Winding machine nozzle.Tungsten steel nozzle ,Each nozzle is made of a solid piece of material with no joints so as to ensure a smooth path for wire travel. The inner bore is ground and polished to Ra0.1. Both the inlet and outlet radii are scientifically calculated and processed to a surface finish of Ra0.025, ensuring smooth travelling and minimal stress to the wire during winding.

Concentricity between the clamping diameter and the outlet diameter is 0.01 mm. The inner bore diameter’s tolerance is 0.01 mm. It is excellent for precision coil layering.

Advantages: high impact resistance, high rigidity, high hardness

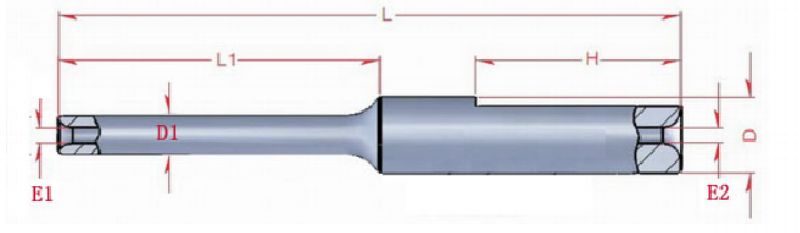

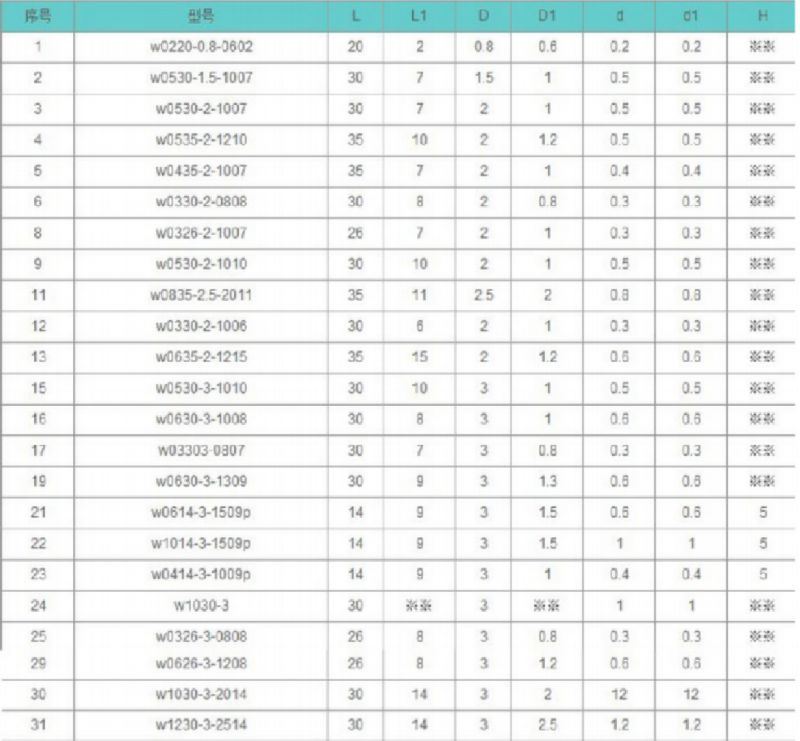

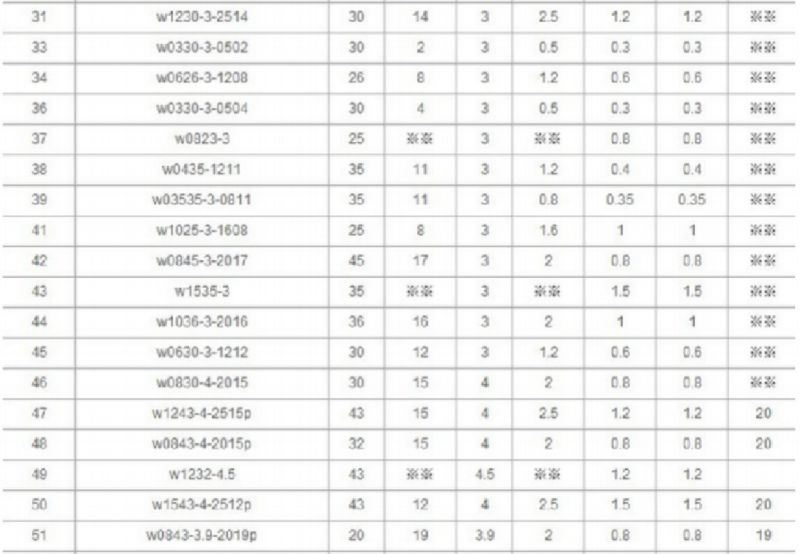

2. Model Selection: Customized
