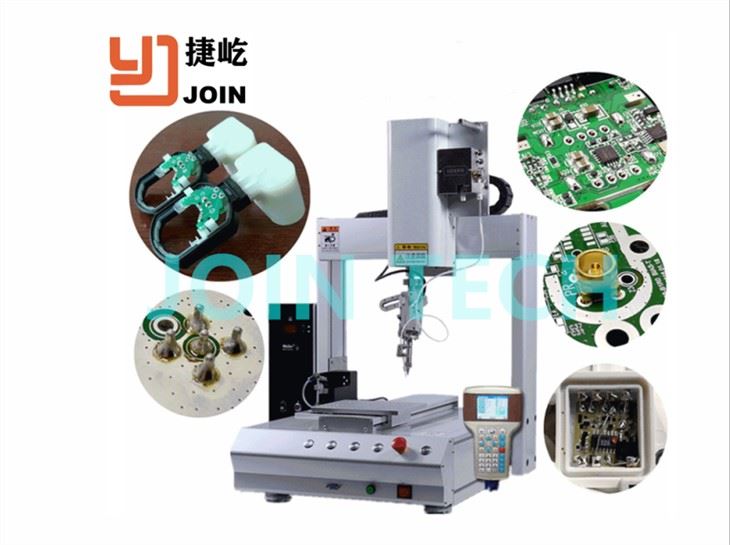

Tin spot soldering robot,For various kind of coils and PCB board soldering.
Machine model: JYHXR-1
1. Range of use
Tin spot soldering robot,For various kind of coils and PCB board soldering.
2. Main function
Manual load coils or PCB board on the tooling
Auto 3D movement for tin feed spot soldering.
Manual unload
3.Machine main specification
Power supply | 220V 50HZ |
X axis width | 300 |
Y axis width | 300 |
Z axis width | 100 |
R axis width | +300 |
3D movement precision | 0.02mm |
Tin feed speed | 0-50mm/s |
Soldering temperature | 50-550 |
Tin wire size range | 0.5-1.2mm |
Working platform load | 8kg |
Program stock | 99 group |
Driven motor | Step motor |
Tin box size | 300mm*100mm*45mm |
Machine size | 500*600*800mm |
Air supply | 0.4-0.6mpa |
Machine weight | 50kg |
